Ford Transit Products
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Roof fan 12 Volt Winglet
This electric fan from G&C ensures a healthy discharge of air in your automobile.
This roof fan only extracts!
The roof fan is made of ABS. The voltage is 12 Volts and the consumption is 3 Watts.
The noise level is 32 DB. The airflow is 65 M³/H. The fan comes standard with an interior grill, shutter and saw template.
By using the 2-way switch you can turn this fan on and off, not included.
The opening in the roof is 80 mm. Construction height is 64 mm.
The fan is available in black.
* material: high quality ABS
* Function: extract air
* Opening in roof: 80 mm
* Construction height: 64 mm
* air displacement: 65 M³ per hour
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Lower Wall Panels for Ford Transit 148 regular length. Fits High, Mid and Low roof vans. See separate listings for 130 short wheel base or extended van.
Wall panels are precision CNC machined based OEM CAD data. Automotive grade standard removable push pins are included to attach the panels to OEM holes. No drilling or screws or new holes required. Panels can be removed for service. Surface of panel is counter-bored for head of push pin which greatly improves appearance. Very much an OEM look. The push pins are black but could be DIY painted to match panel colors.
Plastic lower wall panels are a great easy install option for your build. Then finish out with your preferred look on the upper panels and headliner. Expanded PVC (Celtec) is light but a bit more prone to scratching. Kydex panels offer maximum durability. Individual panels can be replaced if needed. Longer push pins or alternate attachment method would be needed if upholstery is applied.
Panels are all solid. We can cut openings for our wall insert boxes and sub panels in the forward driver's side panel. Please reach out so we can coordinate which openings are needed. These options are not listed.

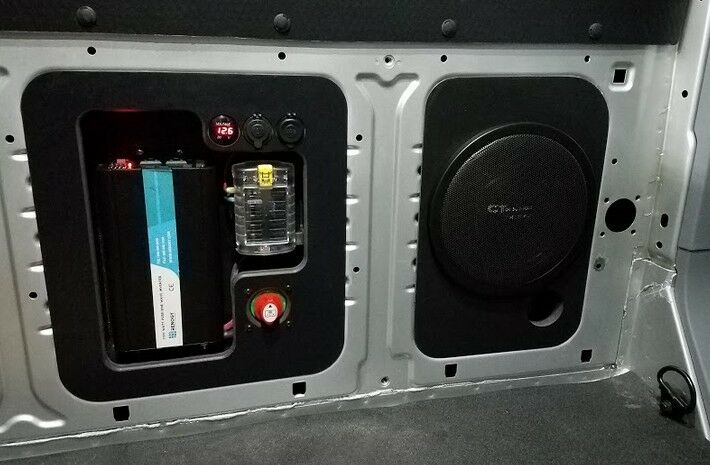

Wall Insert Panel with Built in Box
Also available for local pickup. Please call Kim to arrange prior to ordering. 541-49O-4292
If you have questions about this product you can call or text (preferred) Hein at 541-49O-5O98
DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DISCLAIMER

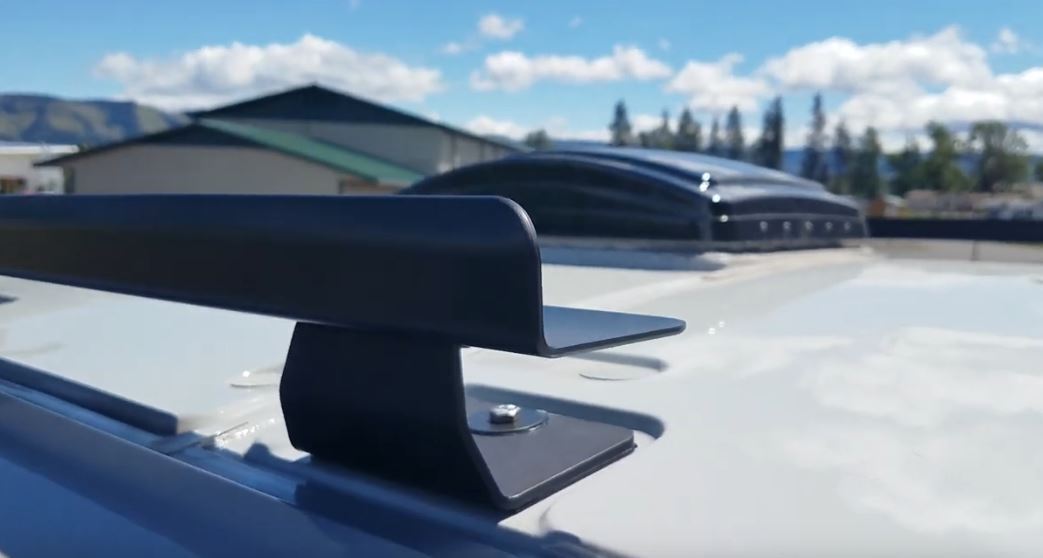

Failure to follow warnings below may allow rack to come loose from vehicle and cause injury
or death.
1. Do not exceed total allowable load by vehicle manufacturer.
2. Use all available attachment points on van roof.
3. Do not install roof top deck or climb on rack.
4. Check and tighten all hardware after 100 miles and every 500 miles there-after.
5. Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold as is and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DISCLAIMER
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury
or death.
1. Do not exceed total allowable load by vehicle manufacturer.
2. Use all available attachment points on van roof.
3. Do not install roof top deck or climb on rack.
4. Check and tighten all hardware after 100 miles and every 500 miles there-after.
5. Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold as is and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

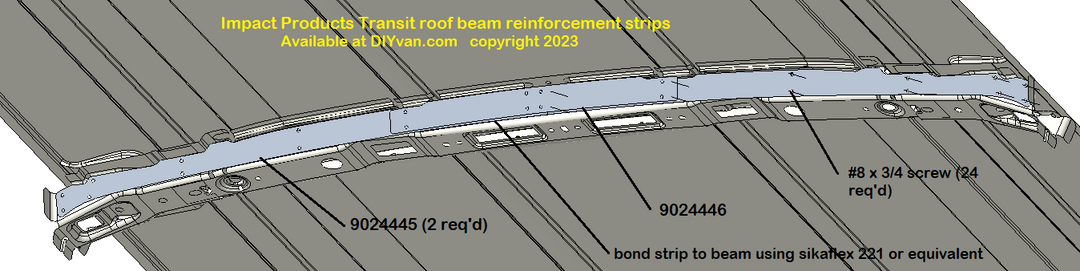

Set of 2 aluminum reinforcement strips to do one side of two beams or both sides of a single beam. Adds additional strength to the beams when installing an Air Conditioner on a Transit van. Especially important in 2 forward most bays which have the greatest span between beams. For best structural strength order two sets and do both sides of each beam.
The surface of the beams will need to be de-glossed with a scotch-brite pad to improve adhesion. Self drilling stainless screws are included. An option with 1 cartridge of Sikaflex 221 is also available.
This adapter fits a 400mm x 400mm opening. Please check you fan.
Fits a 400mm X 400mm opening. These fans are usually purchased in the UK. If your fan requires 14" x 14" opening please message me.
The option with butyl tape includes 64" of tape. If the butyl tape is stuck to the plastic, put it in the freezer for 30 minutes. It will release, then let the butyl tape return to room temperature.
The Low Roof Vent Adapter will also fit on the forward position on the Mid roof Transit.
The level shown in the photo is not included.
Roof Vent Adapter Install Tips
We recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
NOT COMPATIBLE WITH THE ALL WHEEL DRIVE TRANSIT 350 VAN

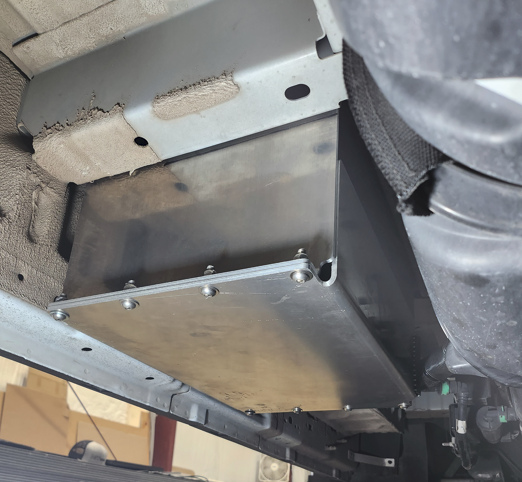

This battery box will include:
If you have questions you can text Hein 541-490-5098
Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
