Ford Transit Products
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

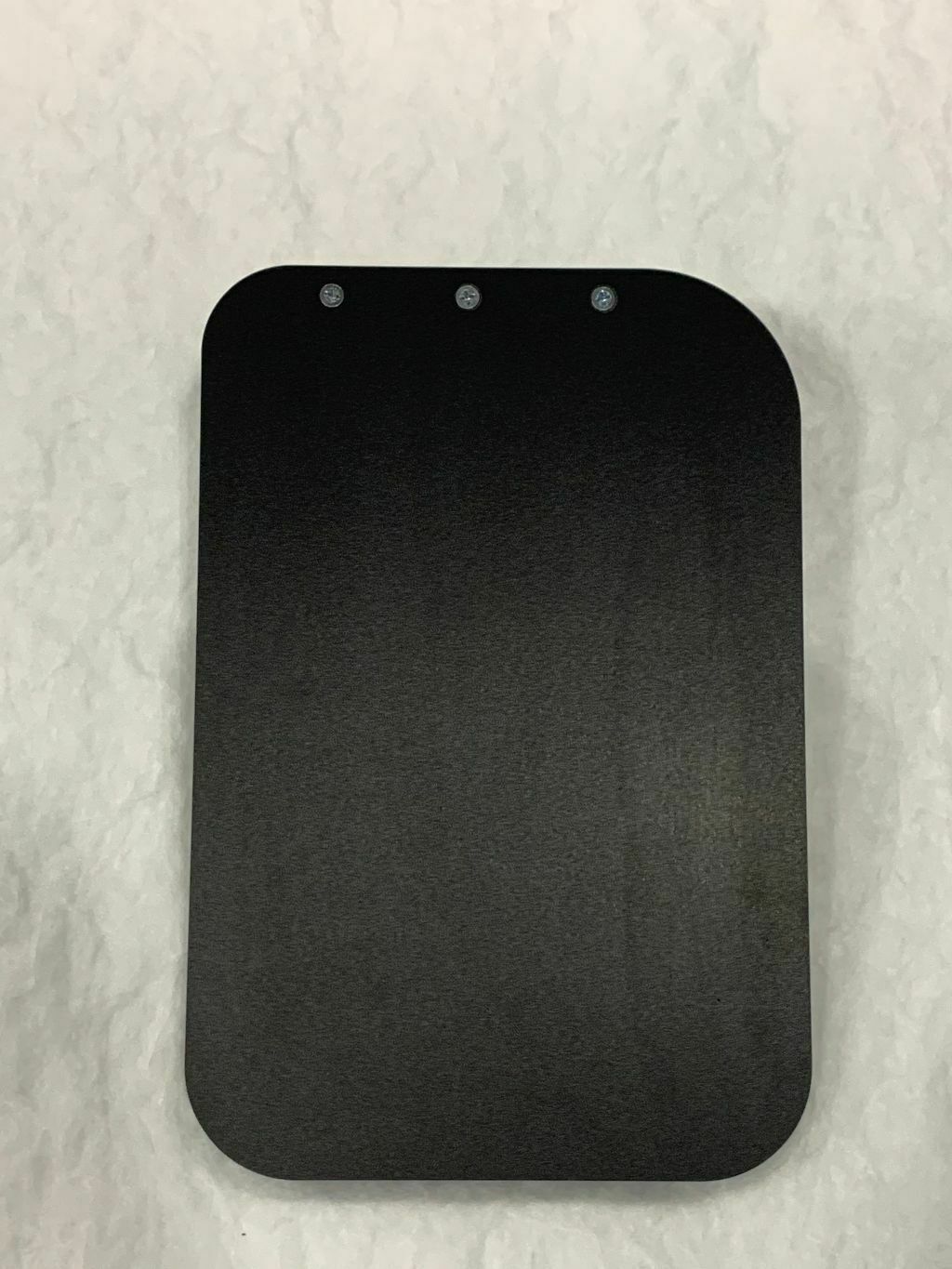

For use with Weathertech mudflaps on Ford Transit van. These 'flaplets' attach to the cab doors and fill the gap left by the Weathertech flaps. They are made of black ABS plastic with haircell texture. They are attached to the door fender trim with 3 small screws. It is necessary to hand form the flaplet to have a slight curvature prior to installation. A heat gun can be used to heat the plastic so it is easier to form into slight curve that matches the door where it will be mounted. Do not over heat.
Kit includes right hand and left hand flaplets and 6 mounting screws.
To install:
1. Turn front wheels to provide clearance.
2. Hand form/bend flaplet into slight curve to match door. Using heat can help.
Textured side of flaplet should be toward back; smooth side toward tire.
3. Locate flaplet on door leaving 1/8" gap between it and top edge of mudflap below.
4. Drill 1/16 pilot holes for screws.
5. Install flaplet with screws provided. Do not over tighten or you may strip plastic trim on door.
6. Turn wheels other way and repeat on other side of vehicle.
You can text Hein at 54l-49O-5O98 for assistance.
Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Xantrex 12V 105Ah Lithium-Ion Battery
If you have questions please call, 541-49O-5O98
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Disclaimer: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
If you have questions please call, 541-490-5098
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
If you have questions please call, 541-49O-5O98
DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold "as is" and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

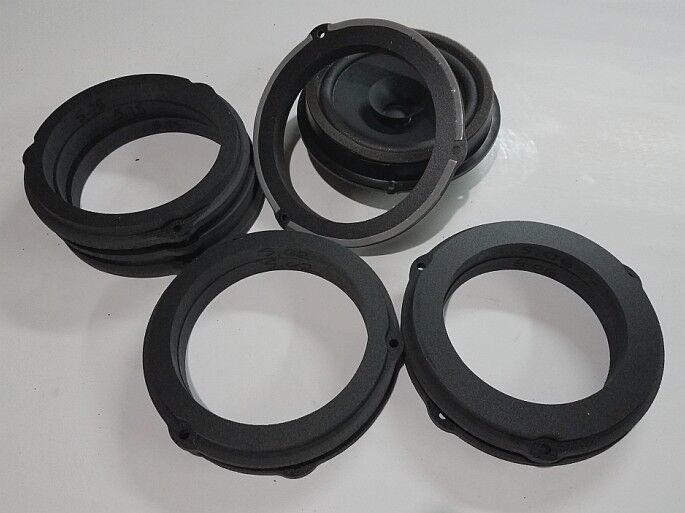

Sold as a pair, these adapters are for upgrading the speakers in the the front doors of 2015 to present Ford Transit vans. The factory door panel and speaker grill is retained for a stealth factory look. This is a crucial step to enjoying better sound quality in your van.
The adapters were designed in 3D CAD and they are machined on a CNC router. The holes in the adapter are perfectly located and countersunk to mount over the factory posts and be secured with the original screws. Then you drill holes in the adapter ring for your speakers and secure them with sheet metal screws. We highly recommend installing 3M Thinsulate(TM) behind the door panel at the same time.
Material for the adapters is 3/4 thick expanded PVC. It won't absorb moisture like MDF or wood and holds screws well without splitting. O.D. is 6.5" (165mm). Thickness is 3/4" (19mm). There are 3 ID sizes to accommodate the cutout diameter needed for the speaker. Please continue reading to learn more about speaker sizing...
While shopping for speakers look for 6 1/2 or 6 3/4 speakers. COAX are the best bang for your buck and component speakers are potentially the best sound but involve replacing the dash tweeters and installing a crossover. Most 6 1/2" speakers require a 5" ID cut out diameter which is the size of hole the speaker will drop into. The corresponds to one of our spacers on the drop down list.
There are also what the industry calls 6 3/4" speakers which allows for a bigger cone and improved base response. These speakers require the 5.62 or 5.75 ID cutout diameter (hole). We have 5.62 and 5.75 ID adapters for these speakers. Do not choose speakers with thick cast aluminum or plastic frames with protruding terminals. These are too large to fit into the smaller hole in the door sheetmetal. It is best to choose a speaker with a thinner formed metal frames and terminals that can be bent slightly should they interfere. Also do not choose a speaker that has a thick frame above the mounting face. This will interfere with the door panel. Overall height of the spacer and speaker should not exceed 1". The door panel can be trimmed to clear a taller speaker. Please contact us if you need help choosing or verifying the fit of a particular speaker.
Here are some specific suggestions of speakers that should fit.
Rockford Fosgate Prime R1675x2, these would take the 5.75ID size,
JBL GT7-6, these would take the 5.625 ID size.
When connecting the factory wires the negative is striped.
Custom sizes are available. Please send the cut out diameter or ID in inches or millimeters.
We are adding an option to include 4 linear feet of SM400L Thinsulate (tm) for the driver and passenger doors.
If you have questions about this product you can call Hein at 541-490-5098
Speaker is not included. Most shallow to low depth 10" speakers will fit. Hole size in plate should match or be slightly larger than top mount diameter of speaker. Please contact us if you don't see the appropriate size listed. We will make it custom.
Please contact Hein at 541 49O 5O98 for assistance in selecting a speaker. We can also assist you in attaching a subwoofer amp to your factory radio.
We also offer a full panel with no holes for mounting electronics.
We are honored to help you with your van build.
Check out our other items!
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Pair with our Insulated Vent Fan Cover and Maxxair Mini Vent Non Powered
This fits a 14" x 14" opening. The adapters in the listing are centered on the roof line. If you need an offset adapter please fill out our form.
Click here for our custom adapter inquiry form.
Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters works with the Maxxair Mini Vent Non Powered Fan.
We make adapters to fit air conditioners and adapters for offset locations. Please contact us so we can verify size and location.
Roof Vent Adapter Install TipsWe recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
If you have questions about this product you can call Hein at 541-49O-5O98
Disclaimer
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
Cover for OEM rear heat. Formed powder coated aluminum panel with expanded PVC plastic sides. Comes with edge guard so it won't rattle. Cleat needs to be attached to floor so bottom can be attached to cleat with screws. This is currently a high lead time item. Can take up to 4 weeks before shipment.
DISCLAIMER:
Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
