Ford Transit Products
AC Adapter Install procedure: We recommend Sikaflex 221 or 3m Window-weld adhesive. Locate and cut the hole. You can use the adapter as a guide to mark the hole. Stay clear of roof supports, obviously. Make a tape line 1/4" beyond the adapter perimeter. De-gloss the area with a Scotch- brite pad. No need to scuff. Just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out. Apply a good amount of the Window-weld on the face of the adapter. Then press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use a lot of lightly set clamps and spread out the clamp force over the whole surface area. Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the AC install per the AC instruction. Seal the adapter and onto the roof about 1/2" with Dicor self leveing sealant or Flexseal from the TV guy works well. Good idea to check the integrity and reapply the sealant every so often.
DISCLAIMER: Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
- 2 and 4 wire size is 2 1/4 inch x 2 1/4 inch. Drill hole is 1"
- 6 wire size is 3 inch x 3 inch. Drill hole is 1 1/2"
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold ?as is? and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
If you have questions about this product you can call Hein at 541-49O-5O98
DISCLAIMER
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury or death.
Do not exceed 40 lbs load on each tower.
- Do not extend any component more than 4" beyond forward or rearward most towers.
- Do not exceed total allowable load by vehicle manufacturer.
- Use all available attachment points on van roof.
- Do not install roof top deck or climb on rack.
- Check and tighten all hardware after 100 miles and every 500 miles there-after.
- Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DISCLAIMER: Owner and/or installer assumes all risk associated with roof top mounted items and/or components. Owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold as is and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
WARNING!! Please verify the opening requirement on your Maxxair Fan. If it is 400mm x 400mm you need to purchase an adapter from our Ford Transit Euro Adapter listing.
Pair with our Insulated Vent Fan Cover and Maxxfan Deluxe 7500K or 7000K Electric Lid Opening

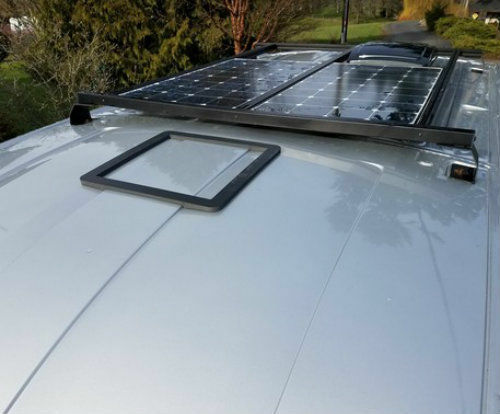

Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters work with the Maxxfan Deluxe series and the Fan-tastic Vent fans.
The framing strips are expanded PVC and bonded to the roof with a thick bead of Windoweld. They are more flexible than wood and plenty strong to support the vent and keep it from jiggling. We double them up when installing roof top air conditioners. They are essential if the span between the OEM roof beams is more than 18". They also provide a backing for the screws that hold up the vent interior bezel. They should be placed 1/4" away from the edge of the hole so the screws for the vent go into the strips. They are a generic size and will need to be cut to length. These strips are not contoured to the van corrugations.
Fits a 14" x 14" opening. Photo of the adapter is in the offset position.
The vent adapter outside dimension is 16 3/4 X 16 3/4. If you are using a Maxxair vent our adapter fits the Maxxfan Deluxe series, other Maxxair vents have a wider flange. You will need a wider adapter. Please call.
If the butyl tape is stuck to the plastic, put it in the freezer for 30 minutes. It will release, then let the butyl tape return to room temperature.
Longer screws than came with the vent fan may be needed.
Roof Vent Adapter Install Tips
We recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
Disclaimer:
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
DO NOT USE WITH ENGINE RUNNING DUE TO RISK OF EXHAUST GASES ENTERING THE VEHICLE.
WARNING!! Please verify the opening requirement on your Maxxair Fan. If it is 400mm x 400mm you need to purchase an adapter from our Ford Transit Euro Adapter listing.
Pair with our Insulated Vent Fan Cover and Maxxfan Deluxe 7500K or 7000K Electric Lid Opening
Patent Pending adapter matches the contour of the OEM roof so a standard RV style vent mounts to a flat surface. Prevents distorting the roof sheet metal or vent flange and can be used as an aid for locating the fan. They are CNC machined out of UV and fire resistant expanded PVC. The fan mounts to the outside adapter. Fan adapters work with the Maxxfan Deluxe series and the Fan-tastic Vent fans.
IMPORTANT
Fan adapters work with the Maxxfan Deluxe series and the Fan-tastic Vent fans.

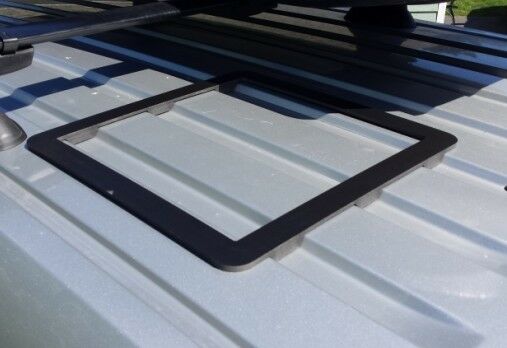

The outside adapter will fit anywhere along the cargo part of the roof. Longer screws than came with the vent fan may be needed.
The vent adapter outside dimension is 16 3/4 X 16 3/4. If you are using a Maxxfan vent our adapter fits the deluxe series, other Maxxfan vents have a wider flange. You will need a wider adapter. Please text Hein at 541-490-5098 for help.
If you order the framing strips they will come in a separate box.
The option with butyl tape includes 64" of tape.
We make adapters to fit air conditioners and adapters for offset locations. Please contact us so we can verify size and location.
The Low Roof Vent Adapter will also fit just ahead of the cargo area on the Mid Roof Transit.
Roof Vent Adapter Install Tips
We recommend Sikaflex 221. Locate and cut the 14 x 14 hole. You can use the adapter as a guide to mark the hole. Stay clear of roof support beams.
Make a tape line 1/4" beyond the adapter perimeter.
De-gloss the area with a Scotch-brite pad. No need to scuff, just dull the paint. Clean with isopropyl alcohol and let dry thoroughly. Blow dryer if it's wet and/or cold out.
Apply three 1/8" beads of the Sikaflex on the face of the adapter. Then, press the adapter down onto the roof until the adhesive oozes out the sides. It's not necessary to clamp. If you do, use several lightly set clamps and spread out the clamp force over the whole surface area.
Using the adhesive that oozes out, make a fillet around the adapter with a double gloved finger. Pull the tape within 15 minutes. Cure is fast on outside. Let cure overnight and then proceed with the fan install.
If you purchased our Interior Framing Strips, using the hole that you cut locate where the transverse strips need to be placed on the longitudinal strips. Assemble the interior frame with the 2" screws provided. Once the frame is assembled it will be glued to the interior side of the roof using Sikaflex 221. If the strips ordered are not bay specific, then you may need to cut them to the length of the panel you are installing it in.
We recommend using butyl tape for the fan install. Cover the fan flange with 1" wide tape. Place the flange onto the adapter and press down. Then drill pilot holes through the adapter and into the van roof. You may need the 4 longer screws provided for the corners. Tighten all screws very lightly against the fan flange. Some butyl will ooze out which you can trim off.
Coat the fan flange, adapter and onto the roof about 1/2" with self-leveling Dicor or brush-on Flexseal. Some sealants will melt the fan plastic so you might try it on a portion of the interior bezel first. You will cut a lot of that piece off.
Good idea to check the integrity and reapply the sealant every so often.
**Please note, if you purchased butyl tape with this order and the butyl tape is stuck to the plastic, place it in the freezer for 15 or 20 min. It will release, then let it return to room temperature.
If you have questions about this product you can call Hein at 541-49O-5O98
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

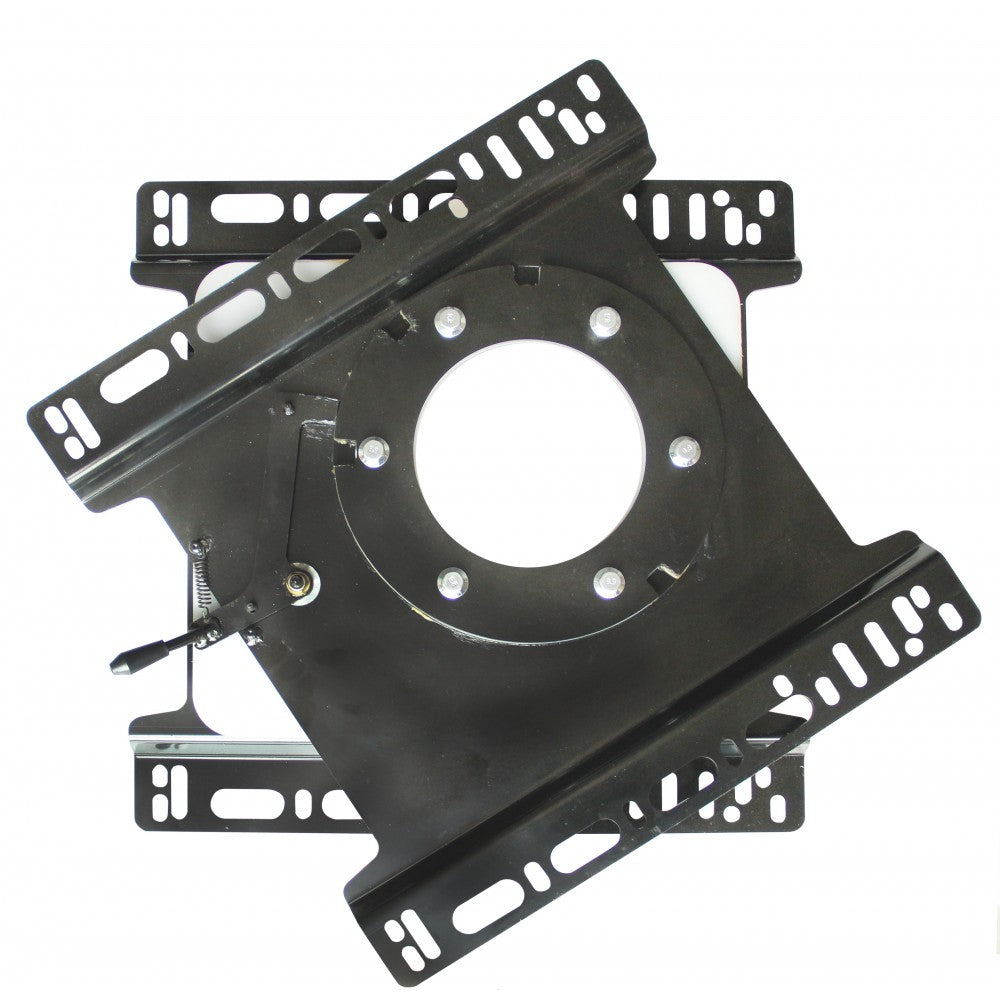

Swivel for Powered Seats
Amazing Auto swivels attach to the Driver and Passenger seat base to allow the seats to spin and latch into different positions.
- 1-1/2 inch tall
- Heavy Duty design
- Offset design allows for seat to spin without opening door
- These are not the cheap AliExpress seat swivels
Installation Video: https://www.sprinterswivel.com/index.php?route=information/information&information_id=9
All Amazing Auto swivels come with the TRUE U.S. DOT FMVSS 207 test report.
U.S. Patent Pending: 297.37.385, 297.34.122
Past DOT FMVSS 207
Transit years 2014-2024 Driver DPD03E and Passenger P006
18.3in (465mm) x 18.3in (465mm) x 1.5in (37mm)
28lbs

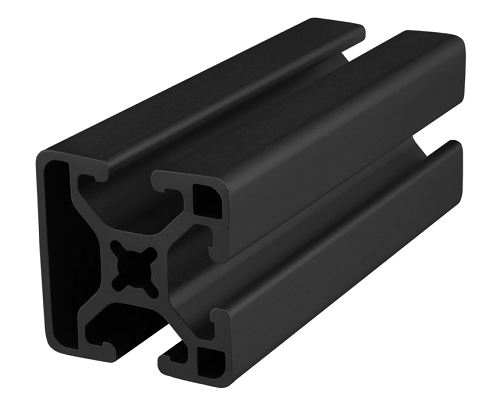

Sold as a Kit. 8020 Rail Kit for Transit.
2 Full length roof rails for Ford Transit vans with towers for Low, Mid, and High Roof Transit Vans. This kit allows you to easily add a modular solar rack to your Transit van. See our Crossbar Kits to easily add crossbars to your roof rails to build a complete solar rack kit.
** Black Anodizing may fade over time due to sun exposure.
Kits include the following plus hardware.130WB 1 piece rail kit includes:
6 Ford Transit V2 Brackets
4 Square End Caps
2 79" 1503-LS Bars
148WB 1 piece rail kit includes:
8 Ford Transit V2 Brackets
4 Square End Caps
2 96" 1503-LS Bars
148WB 2 piece rail kit includes:
8 Ford Transit V2 Brackets
4 Square End Caps
2 72" 1503-LS Bars
2 34" 1503-LS Bars
Rail length is a total of 106"
148WB Extended 2 piece rail kit includes:
10 Ford Transit V2 Brackets
2 Ford Transit V2 Extended brackets and pads
4 Square End Caps
2 72" 1503-LS Bars
2 63" 1503-LS Bars
Rail length is a total of 135"
WARNING!
Failure to follow warnings below may allow rack to come loose from vehicle and cause injury or death.
- Do not exceed 40 lbs load on each tower.
- Do not extend any component more than 4" beyond forward or rearward most towers.
- Do not exceed total allowable load by vehicle manufacturer.
- Use all available attachment points on van roof.
- Do not install roof top deck or climb on rack.
- Check and tighten all hardware after 100 miles and every 500 miles there-after.
- Check overall integrity of rack every 500 miles or monthly whichever is more frequent.
If in doubt, please submit rack plans or photos for evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.
The material comes compressed; we recommend unpacking it as soon as it is received. One roll is 20 linear feet. 20ft long by 60 inches wide.
Arctic Fiber is a high-loft 100% non-woven, thermally bonded polyester insulation. The material is 2" thick after it lofts up. One roll of material is 20 feet long x 60" wide. This insulation is widely used in Alaska in the Van industry and has other uses in pads, covers on exterior pipe, flange valves and other special equipment.
- Allows Trapped moisture to pass through it without being held in place and drys out quickly.
- Polyester batt insulation will not promote mold growth.
- Lightweight and easily fabricated to desired dimensions with a utility knife or scissors.
- Is not an irritant and will not cause skin irritation.
- Passes the FMVSS302 burn rate test.
Recommend using a high temp adhesive spray to apply to the van skin.
Approximate amounts needed to insulate the walls, ceiling, doors and cab area:
144 WB Sprinter,148 WB Ford Transit with slider window & window in back doors = 50 linear feet
Promaster 159 WB = 60 linear feet
170 WB Sprinter = 60 linear feet
170 WB Extended Sprinter = 70 linear feet
Please call if you are in Alaska or Hawaii for shipping 541-49O-4292
Sold by the each.
If you have questions please call, 541-49O-5O98
Front or Rear Fender Liners for the Ford Transit van.
Sold as a pair.
We don't have an ETA on when these will be available again.
Patent pending adapter matches the contour of the OEM roof so a Midi Heki Roof Light mounts to a flat surface. Perimeter of adapter matches vent cover for best performance and appearance. Prevents distorting the roof sheet metal or vent flange. Can be used as an aid for locating the fan. Adapters are CNC machined out of UV and fire resistant expanded PVC. The vent mounts to the outside adapter. The outside adapter will fit anywhere along the center cargo area of the roof. We recommend 3M Window-weld or Sikaflex 221 adhesive for adhering the adapter to the roof. Additionally , we recommend that you seal the adapter and roof light after it is installed with a membrane sealant such as Dicor.
Fits a cut out dimension of 500mm x 700mm.
Midi Heki Roof Light is not included.
Photo shown is on a Promaster.
When purchasing an adapter for a Sprinter Van please include a note indicating where you want to place the vent so we can produce the appropriate geometry to match the roof in that location. We will need to know the exact placement of the Skylight. We will need a measurement from the CENTER of the small plug in the rear of the van to the back edge of the opening that you will cut. We also need to know if your van is a 144WB, 170 WB or 170 Extended wheel base. You are also welcome to send a photo to 541 49O 5O98. Please include your name if sending photo. Standard locations for Sprinter vans can be found in the drop down list for this item https://www.ebay.com/itm/132298140143
If you have questions please call Hein 541 49O 5O98
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purposePlease contact Hein 541 49O 5O98 if you have questions about this product.
Van owner and/or installer assumes all risk associated with roof top mounted items and/or components. Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose.

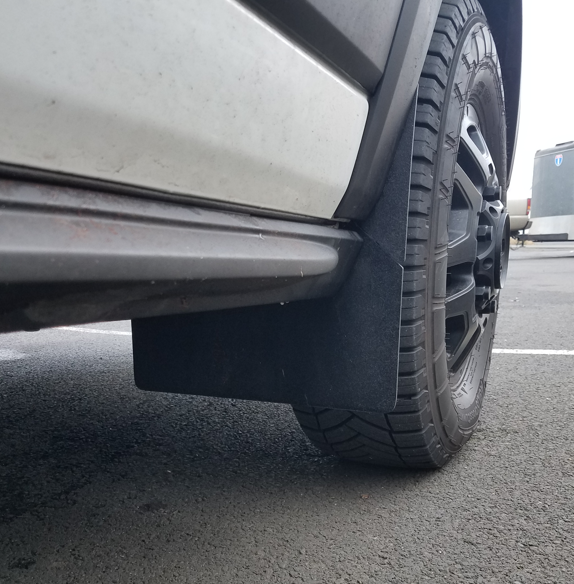

These engineered ABS plastic mud flaps offer more coverage and better protection than any other offerings. There are two parts as shown in the listing photos. The large lower portion attaches to the fender and liner and a smaller flaplet attaches to the door trim. The lower portion extends far to the inside for better protection of the vehicle under-body.
Please note that optional factory (OEM) plastic fender liners are required (not included) to install and secure these mudflaps.
****We have found that the mudflaps do not work with the aftermarket fender liners that we are selling on our site. We are currently looking into a solution.
The flaps are secured with a combination of push pins and screws plus a bracket to help stabilize the inner end of the lower part.
There is some minor drilling involved and installation is much simpler if front wheels can be removed. Be sure to support vehicle on jack stands when wheels are off.
All hardware and instructions are included. Please refer to listing photos before purchase.
You can text Hein at 54l-49O-5O98 for assistance
Van owner and/or installer recognizes and agrees that this product, and each of its component parts, is sold “as is” and that seller makes no representation or warranty of merchantability that the product is fit for any particular purpose

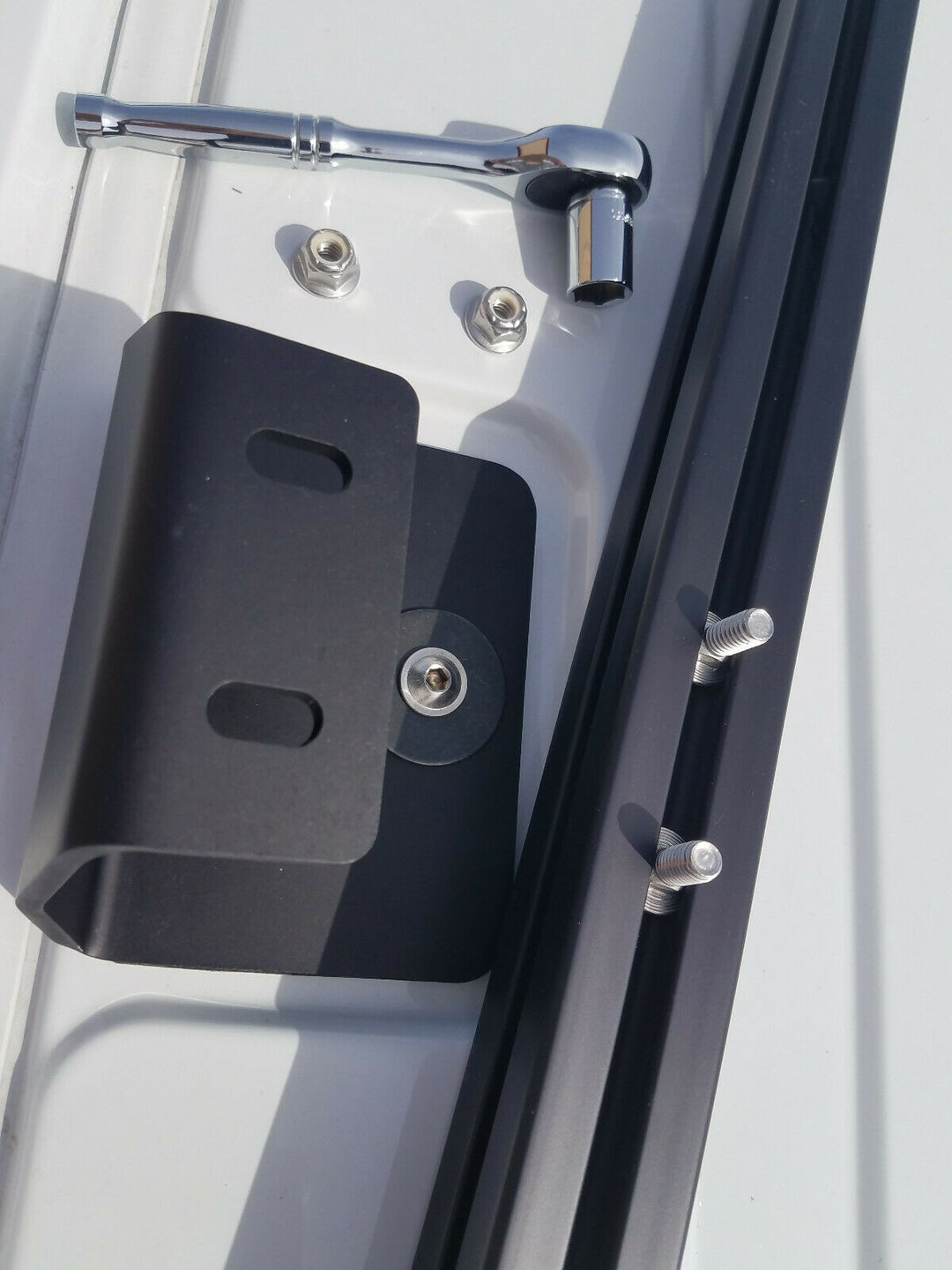

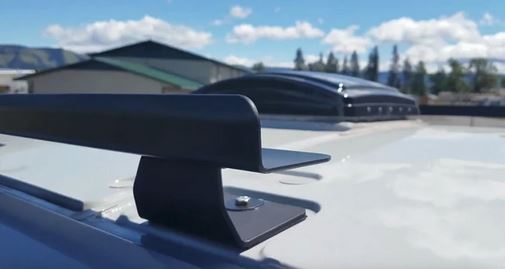

Patent Pending. Sold in pairs. Ford Transit tower brackets. Laser cut, CNC formed tower brackets for use with 15 series 8020 square crossbars to mount solar panels and other accessories to the roof of Ford Transit vans using factory supplied OEM mounting locations. Crossbars are NOT included.
Available with clear or black anodized finish. Towers have EDPM pads to protect paint on roof of van and help seal against moisture. Includes hardware required to mount to van and attach 8020 crossbars. 80/20 bars are NOT included. Order crossbars 55.25" long and tapped 5/16-18 in both ends. Please visit 8020.net to spec and order crossbars. Please contact us for assistance.
*Black Anodizing may fade over time due to sun exposure.
Do not exceed 20 lbs load per tower. Not intended as a rack for hauling large or heavy items. Do not exceed total roof top weight allowed by vehicle manufacturer. Please contact us with any questions about how to use this product.
select 'square' for use with 15 series 8020 square profiles (uses 55.25" crossbars)
select 'rounded' for use with 1517 8020 rounded profile (uses 55.25" crossbars)
select 'extended' if the crossbar needs to extend beyond the tower. Compatible with both rounded and square 8020 profiles. This version does not cap the end of the crossbar so separate caps can be purchased with the 8020. Maximum extension beyond tower not to exceed 6". Not suitable for mounting heavy awnings not otherwise supported.
Please take a look at our support tabs for mounting solar panels to the cross bars, item number
141878685652. We also have a listing for 8020 cross bars, item number 132871157220.
If you have questions about this product you can call Hein at 541-49O-5O98
Failure to follow warnings below may allow rack to
come loose from vehicle and cause injury or death.
If in doubt, please submit rack plans or photos for
evaluation prior to final installation or use.
Van owner and/or installer assumes all risk associated
with roof top mounted items and/or components.
Van owner and/or installer recognizes and agrees that
this product, and each of its component parts, is sold
“as is” and that seller makes no representation or
warranty of merchantability that the product is fit for
any particular purpose.
IMPORTANT SAFETY WARNINGS:
* Do not exceed 20 lbs load on each tower.
* Tower spacing down length of roof not to exceed 30"
* Do not allow solar panels to overhang side of roof.
* Do not extend any component more than 4" beyond forward
or rearward most towers.
* Do not extend crossbar more than 4" beyond slot in tower
* Do not exceed total allowable load by vehicle manufacturer.
* Use all available attachment points on van roof.
* Do not install roof top deck or climb on rack.
* Check and tighten all hardware after 100 miles
and every 500 miles there-after.
* Check overall integrity of rack every 500 miles
or monthly whichever is more frequent.
Assembly:
* Refer to diagram.
* Use all parts and hardware.
* Tab that bridges or passes through slot in tower
must be used. DO NOT OMIT TAB
* Torque 5/16-18 hardware to 8 ft-lbs
* Use Loctite blue on any connection without toplock nut.
If you have questions about this product you can call Hein at 541-49O-5O98
